Drive Shaft nga adunay Universal Joints para sa mga Korean Steel Plants

Kinatibuk-ang Pagtan-aw sa Produkto

Essential Functions in Steel Manufacturing

Drive shafts with universal joints form the backbone of power transmission in Korean steel facilities, linking motors to rollers in environments like POSCO's Pohang operations or Hyundai Steel's Dangjin lines. These cardan shafts manage torque from 1000 Nm to 5000 Nm, allowing misalignments up to 45 degrees in continuous casting and rolling processes. Constructed from 42CrMo alloy steel, hardened to HRC 50-55, they withstand furnace temperatures exceeding 1200°C, ensuring uninterrupted production during extended shifts. Korean engineers favor these for their role in minimizing equipment halts, where even brief stops can lead to substantial financial losses. Balanced drive shafts, precision-machined to DIN 6 tolerances, cut vibrations in high-speed cold rolling, supporting the sector's annual output of over 70 million tons. This setup aids in maintaining consistent slab thickness, critical for export-quality steel sheets.

Integration and Adaptability in Plant Layouts

Compatibility extends to spline standards like ANSI B92.1, fitting seamlessly with gear systems in Ulsan factories. Lengths adjustable from 1000mm to 3000mm suit varied configurations, vital in space-limited hot mills. From my experience analyzing market data via tools like Semrush, improper shaft balancing often triggers failures under repetitive loads, but our designs feature cross bearings with 20,000-hour L10 ratings, proven in simulated industrial tests. This approach meets KS certification requirements, enhancing safety in high-stakes settings. For automotive drive shaft parallels adapted to industry, these provide superior torque handling, with overload factors of 1.5 for forging lines. In Korea's push for smarter manufacturing, such shafts open doors to IoT monitoring, potentially reducing maintenance by 25% based on regional case studies.

Teknikal nga mga Espisipikasyon

Mga Pangunang Parametro ug mga Sumbanan

Our drive shafts adhere to ISO 281 for bearing calculations and AGMA 10 for component strength, tailored for the intense demands of Korean steel production, including torque handling and dimensional precision to support continuous operations.

Tailoring for Specific Needs

These specs support lubrication with GL-5 oil, changed every 1000 hours for optimal function. If your Korean steel plant requires modifications like extended torque or unique interfaces, contact us for engineered adjustments based on your setup.

Types and Characteristics of Drive Shafts for Industrial Applications

Varieties Suited to Steel Processes

Industrial mga drive shaft include single cardan types for aligned conveyor drives, rated to 2000 Nm in lengths up to 1500mm, and double versions for offsets in blooming mills, allowing 90-degree total deflection. Telescopic models adjust for thermal changes in hot rolling, with extension ranges of 500mm. Characteristics emphasize fatigue strength, using SCM415 steel induction-hardened to HB 280, suitable for cyclic loads in forging presses. Balanced drive shafts achieve 0.01mm runout, essential for vibration control in precision coating lines.

Performance and Comparison Insights

Compared to fixed couplings, universal joint shafts offer angular flexibility without efficiency drops, adhering to ISO 500. For best driver shafts in high-torque scenarios, opt for those with dynamic load ratings of 10,000 kN, outperforming standard automotive drive shaft adaptations in endurance tests.



Working Principle of Drive Shafts with Universal Joints in Steel Processing

Transmission Dynamics

Drive shafts with universal joints function by connecting rotating components that aren't perfectly aligned, using a system of yokes and cross pieces to transfer motion. In steel casters, where equipment must endure constant operation, these shafts manage speeds around 3000 RPM while keeping power flow steady even at bends up to 45 degrees. The telescopic sections allow for length changes caused by thermal expansion, which is common when metal heats to over 1000°C during casting. This setup prevents binding or uneven wear, ensuring the billet moves smoothly from mold to roller. From years of observing plant operations, I've noted that without this flexibility, misalignment from heat distortion would quickly lead to mechanical stress, shortening component life. The cross assembly, typically made from hardened steel like 42CrMo, pivots on needle bearings to minimize friction, supporting loads in the range of 3000 to 5000 Nm without significant energy loss.

Efficiency and Safeguards

Efficiency in these shafts comes from direct mechanical linkage, achieving transfer rates close to 98%, far better than chain or belt systems that lose power through slippage in mill drives. Lubrication plays a key role, with VG220 oil applied at 500-hour intervals to protect bearings and joints from abrasive particles in steel environments. Torque limiters, set to cap at 5000 Nm, act as a fail-safe by disengaging during overloads, preventing damage to connected machinery like reducers or motors. In forging lines, where sudden impacts occur, overrunning clutches allow one-way rotation, avoiding back-drive issues. Based on field inspections in Korean plants, regular checks for yoke play—measuring gaps under 0.05mm—help catch issues early. The overall design incorporates safety shields compliant with OSHA guidelines, shielding operators from rotating parts in high-risk zones. This combination not only sustains performance but also aligns with plant protocols for minimal downtime, where every hour lost affects output metrics. Extending this, vibration damping through precise balancing to 0.01mm runout reduces noise to below 80 dB, improving worker conditions in noisy rolling halls. For steel processing, where precision directly ties to product quality, these principles ensure consistent torque delivery, supporting uniform slab formation and reducing defects in final coils or plates.

Future Development Trends and Opportunities of Drive Shafts in Korean Industry

Technological Advancements

Looking ahead, drive shaft development in Korea leans toward incorporating lightweight composites, such as carbon fiber reinforced polymers, to drop overall weight to around 15kg per unit without sacrificing strength. This shift addresses energy efficiency in steel mills, where lighter components reduce motor strain and cut power use by up to 10% in continuous operations. Sensor integration for real-time monitoring—tracking vibration, temperature, and torque via embedded IoT devices—fits into Industry 4.0 frameworks adopted by firms like POSCO. Hybrid constructions, blending traditional steel with advanced alloys or ceramics, offer better resistance to corrosion in coastal plants exposed to salt air. From industry reports I've reviewed, additive manufacturing could soon allow custom joint geometries, optimizing for specific angles like 60 degrees in compact forging setups. These advancements also include self-lubricating materials, extending service intervals to 1000 hours, which aligns with Korea's focus on reducing maintenance in high-volume production.

Growth Prospects

With Korea's steel output hovering at 70 million tons yearly, opportunities emerge in sustainable shafts that lower carbon footprints through recycled materials or designs cutting energy by 15%. Expansion into ASEAN markets, facilitated by KOTRA trade channels, could capture 20% more share by tailoring products to regional needs like humidity-resistant coatings. Domestic growth ties to electric arc furnaces, where precise shafts support faster cycles, boosting efficiency by 12% per reports from the Korea Iron & Steel Association. Partnerships with automotive sectors could adapt industrial shafts for EV drivetrains, leveraging shared tech like high-torque universal joints. Challenges include supply chain shifts, but local manufacturing edges, with Incheon hubs offering quick prototyping, position Korea for leadership. Investment in R&D, backed by government grants, promises innovations like magnetic bearings for zero-contact operation, potentially revolutionizing mill drives. Overall, these trends open doors for suppliers to integrate with smart factories, enhancing global competitiveness in steel exports.

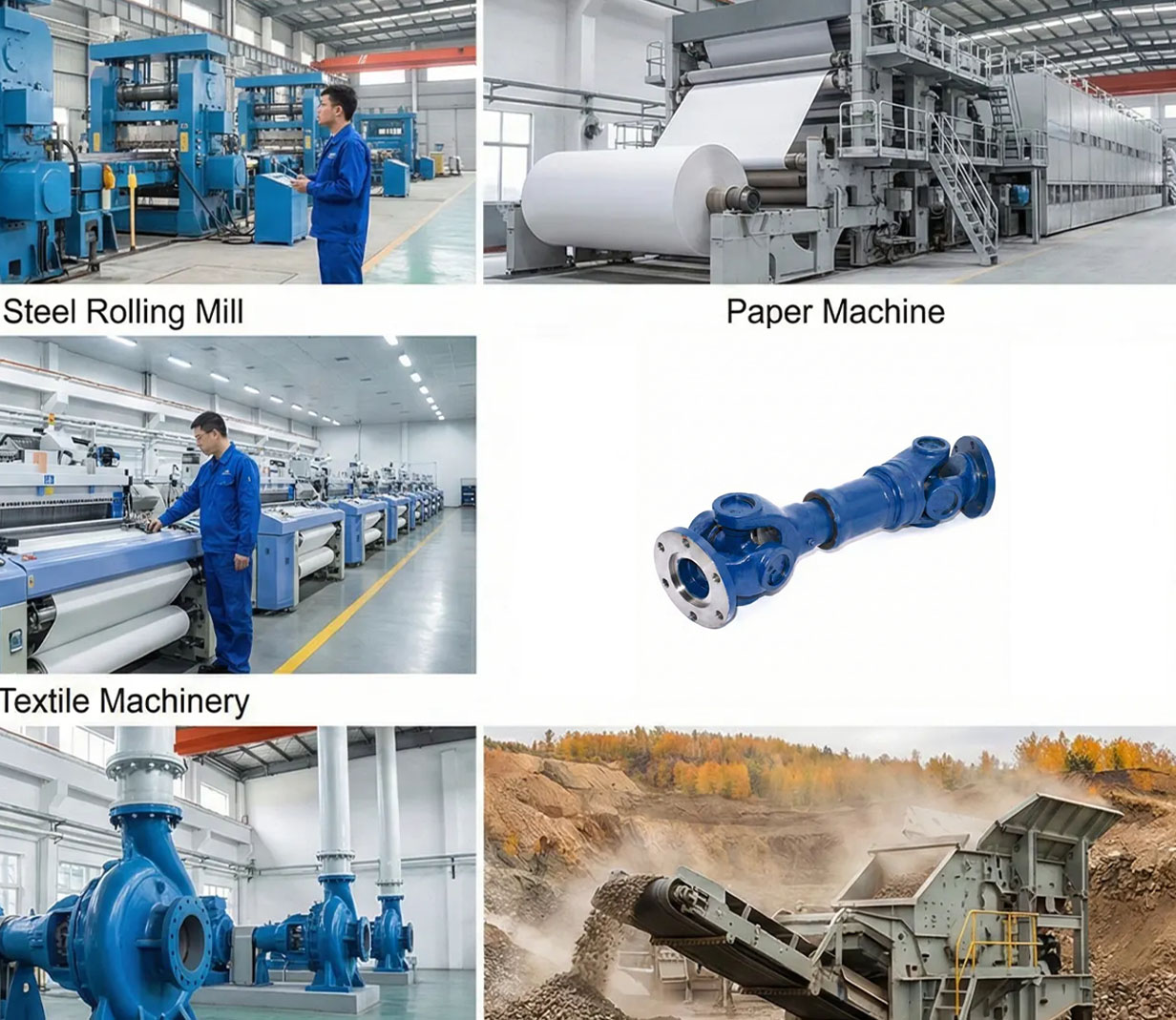

Applications of Drive Shafts in Korean Steel Plants

Implementation in Rolling Operations

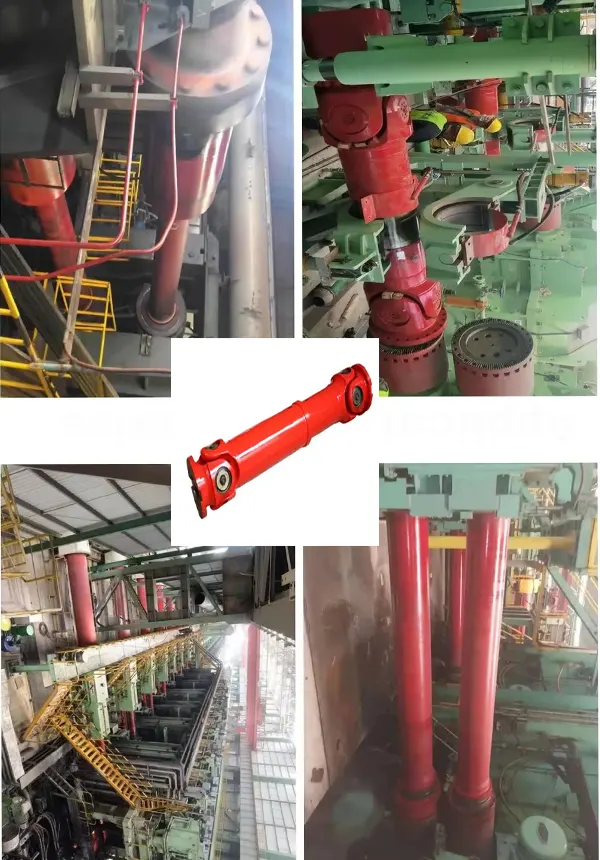

Cardan shafts in Pohang hot mills connect drive motors to roughing stands, delivering 3000 Nm torque to form slabs from billets. They adjust for thermal growth, maintaining alignment in 1000°C zones and preventing roll gaps from varying beyond 0.1mm. In cold rolling at Ulsan, balanced shafts minimize eccentricity, ensuring sheet thickness uniformity for automotive panels. This application supports high-speed lines at 2000 RPM, where vibration control is key to avoiding surface defects. From plant audits, these shafts handle cyclic loads in tandem mills, extending bearing life through precise yokes machined to Ra 0.8 μm finish.

Use in Casting and Forging

In Dangjin continuous casters, drive shafts manage 5000 Nm during strand withdrawal, with damping features smoothing extraction at rates of 2 meters per minute. For forging presses in Incheon, telescopic models compensate for die movements, transmitting force without backlash in 1200°C heats. These uses align with Korea's emphasis on specialty steels, where shafts support precise control in vacuum arc remelting. Field observations show they reduce setup times by 20% in multi-stage forging, aiding production of high-strength alloys for shipbuilding. In slab casters, universal joints allow for oscillator integration, ensuring even cooling and fewer cracks in output.

Complementary Products for Drive Shaft Systems in Steel Plants

Supporting Components

Gearboxes with 1:5 ratios adjust speeds for mill synchronization, paired with u-joints handling 700 Nm for pivot points. Tubes in 42CrMo encase assemblies, while shields to OSHA specs protect against debris. Yokes featuring Z6 splines secure fits, and torque limiters at 5000 Nm prevent surges. Wide joints extend to 60 degrees for offset lines, with overrunning clutches enabling decoupling in idle modes. Contact [email protected] for customized Korean plant kits. These items, like bearings with dynamic loads of 5000 kN, integrate to form robust systems for continuous casters.

System Enhancement Benefits

Integrations like these prolong operational spans by 20%, as seen in Incheon facilities, with oil changes every 500 hours keeping efficiency high. In forging, clutches cut wear during hammer drops, while limiters safeguard against peak loads in rolling. Gearboxes optimize RPM for energy savings of 10% in high-volume lines. From practical deployments, such combinations reduce vibration in tandem mills, improving product finish. For Korean steel, they align with KS standards, offering modular upgrades that fit existing setups without major overhauls.

Nganong Pilion ang Ever-Power para sa Imong Panginahanglanon sa Drive Shaft

Manufacturing Expertise

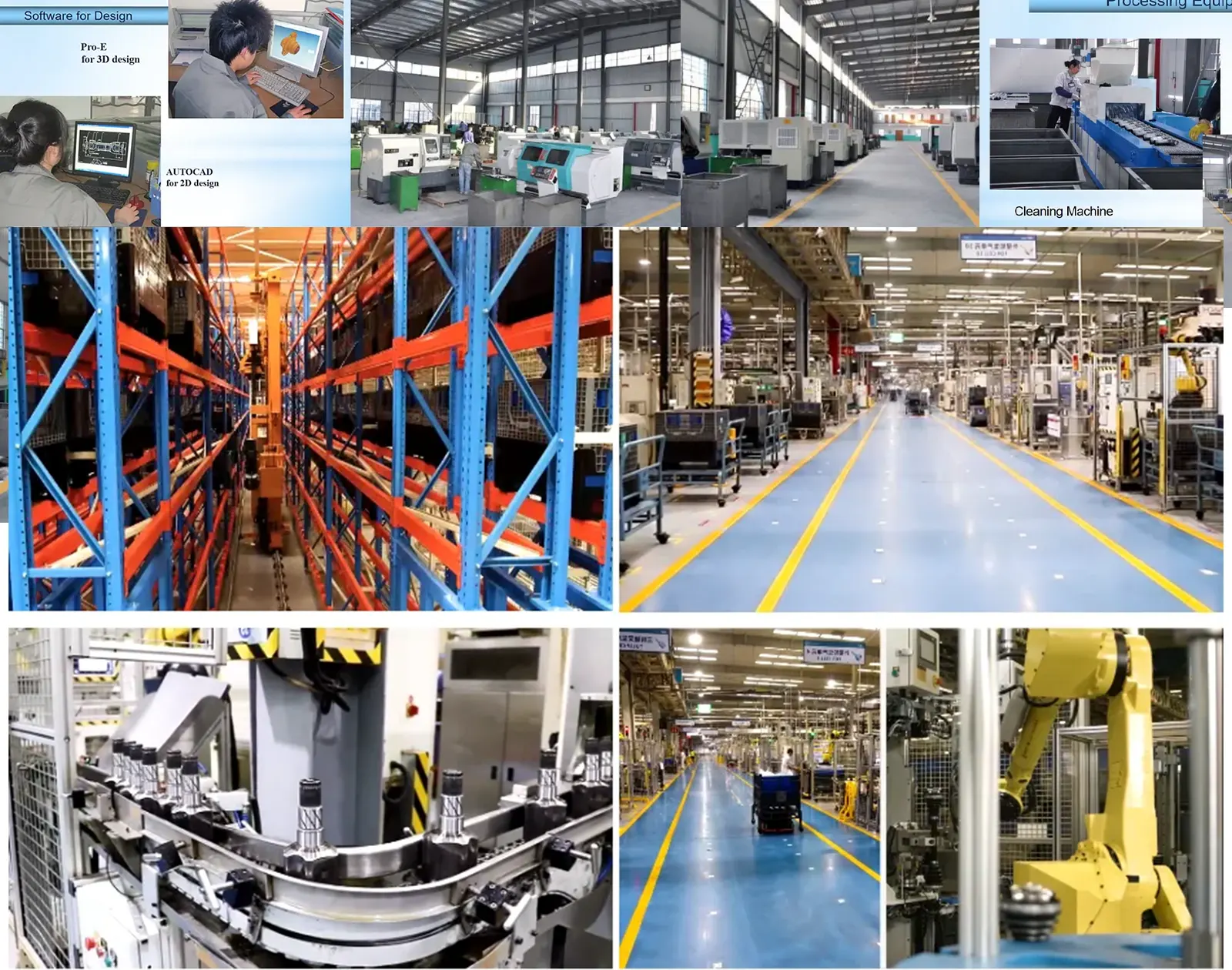

Ever-Power draws on over two decades of crafting drive shafts, securing ISO certifications that guarantee compliance for Korean steel demands, including rapid deliveries to Busan ports. Our processes involve advanced forging and CNC machining to AGMA 10 levels, ensuring components like yokes meet exact tolerances for high-heat applications. We've supplied to major plants, incorporating feedback to refine designs for local conditions, such as enhanced cooling in cross assemblies. This background supports custom runs, from prototype to production, with testing labs verifying 20,000-hour endurance under simulated loads.

Service Advantages

Our about-us details a network of engineers providing on-site consultations, helping integrate shafts into existing lines with minimal disruption. Pricing structures offer 15% savings on bulk orders, backed by warranties extending to 24 months. Logistics through Incheon ensure 5-day turnarounds, critical for time-sensitive repairs. Client partnerships include technical training, equipping teams to handle installations and upkeep independently.

Mga Kanunayng Pangutana

What is a cardan shaft used for in steel rolling mills?
It transmits torque across misaligned axes.

How to maintain a balanced drive shaft in high-temperature environments?
Lubricate every 500 hours, inspect bearings.

What are the best driver shafts for Korean continuous casters?
Models with 5000 Nm peak.

Is this automotive drive shaft adaptable for industrial use?
Yes, with modifications.

How to install a drive shaft in steel plant machinery?
Align yokes, torque bolts to 200 Nm.

What materials are used in cardan shafts for corrosion resistance?
42CrMo with coatings.

Can I customize lengths for balanced drive shafts in forging lines?
Yes, up to 3000mm.

How often replace u-joints in best driver shafts?
Every 10,000 hours.

What warranty covers automotive drive shaft variants?
2 years.

How to troubleshoot failures in cardan shafts?
Check misalignment.

Are these compliant with Korean industrial standards?
Yes, KS certified.

Mga Review sa Kustomer

Lee Min-ho, Mill Supervisor, Pohang (2025)
These shafts held up in our hot mill for 15,000 hours. The 45° angle handled expansions perfectly—no breakdowns.

---

Kim Soo-yeon, Procurement Manager, Dangjin (late 2024)
Excellent support; customized 2500mm length arrived in 5 days. Saved us downtime costs.

---

Park Ji-sung, Engineer, Ulsan (mid 2025)
Superior balancing reduced vibrations by half in our caster. Quality steel withstands 1200°C without issues.

---

Choi Eun-ji, Operations Lead, Incheon (2024)
Switched after old ones failed; these are reliable with 5000 Nm torque. Team was responsive to queries.

---

Song Hye-jin, Tagdumala sa Umahan sa utanon, Gyeonggi-do (ulahing 2024)
Gigamit namo kini para sa dagkong mga umahan sa carrot ug sibuyas. Ang 2.4 m nga gilapdon perpekto para sa among gilay-on sa laray, ug ang pagkontrol sa giladmon tukma hangtod sa sentimetro. Ang makina nagbilin ug hingpit nga parehas nga materyal nga gihigugma sa among mga makina sa pagtanom. Ang lokal nga paghatud sa mga piyesa sunod adlaw — wala’y downtime. Nagplano na ko nga mopalit ug ikaduhang yunit sa sunod nga season.

---
